Tyre Pyrolysis Oil Plant With Auto Feeder Waste Management Pyrolysis Machine Waste Tire
Product description

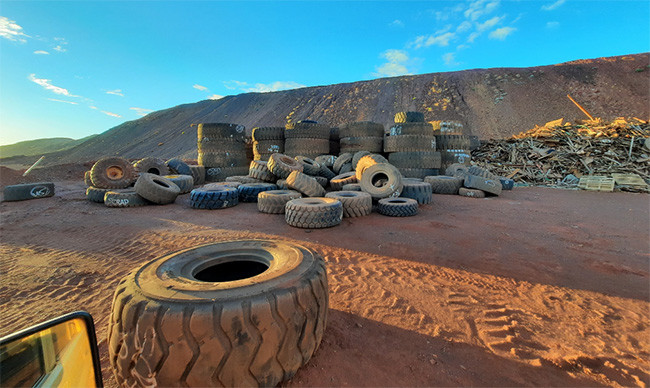

The function of the waste tire pyrolysis plant is to convert various kinds of waste tires like car tyres , motorcycle tires, bicycle tires, and OTR tires to fuel oil, carbon black, steel wire, and syngas. Due to the advantages of environmentally friendly, energy-saving, high safety level, and large profit of this equipment, it is widely used for the treatment of waste rubber products.
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber |
| Output | 45% fuel oil, 30% carbon black, 10% steel wire, 10%-15% syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
What you will get from different amounts of tires?
| Capacity | 6 tons waste tire | 10 tons waste tire | 20 tons waste tire |
| Tire oil 40-45% | 2.4 ton | 4 ton | 8 ton |
| Tire carbon black 30% | 1.8 ton | 3 ton | 6 ton |
| Tire steel wire 15% | 0.9 ton | 1.5 ton | 3 ton |
| Syngas 5-10% | The syngas generated during the pyrolysis process is recycled through a gas recycling system into the furnace to heat the reactor or are stored in a gas storage system for preheating as fuel next batch, reducing your fuel consumption while avoiding any possible air pollution caused by direct emission. |
Main features
1. High automation: Loading used tires/plastic into the pyrolysis reactor with 50ton hydraulic pressure, so the auto feeder can help you save labor and load more waste raw material, compared with manual feeding, the automatic feeder is more efficient.
2. 100% safety: The pyrolysis reactor is made of Q245R/Q345R boilerplate, which is high pressure and high-temperature resistance that ensure its longer service life. Adding perfect hot seal technology to ensure operation safely.
3. Environmental friendly: Flue gas is purified by ceramic packing dedusting device, finally no black smoke emitted.

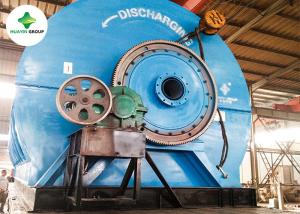

4. High efficiency discharging device: Discharge carbon black from pyrolysis reactor after the production is finished in a sealed condition, no pollution and saves labor and time.
5. Strictly quality control. All of the steel plates are purchased from China's famous company " Anyang Iron and Steel Co., Ltd ", and the raw material inspection certificate can be provided to customers. For each set of machines, we will do ultrasonic nondestructive testing, and automatic submerged welding technology to ensure the machine quality.

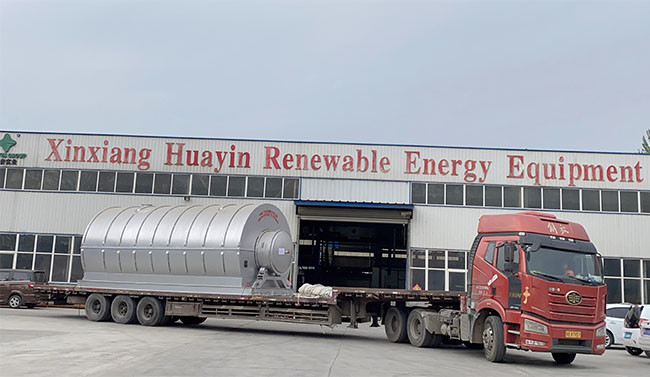

Packing and shipping
| Packaging details | 1*40FR and 1*40HQ for 10 tons 2*40 HQ for 5 tons Weight: about 30tons All goods are packed with export standard package to make sure no damage during transportation. |
| Detail details | about 15 days after receiving deposit. |
Product Tags:
|
|
ISO Waste Pyrolysis Oil Plant Batch Type With Auto Feeder Waste Tire Images
|
