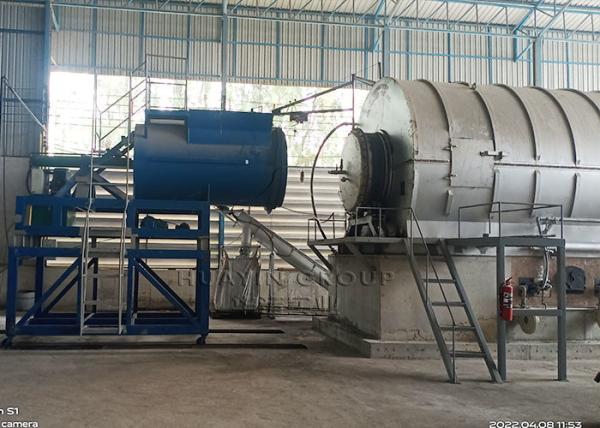

30 Ton Car Tire Pyrolysis Oil Plant Converting Tyres To Fuel Pyrolysis Equipment
Product description
With the rising public awareness for environmental protection, Waste tire/plastic recycling has attracted more and more attention all over the world. Huayin pyrolysis technology can convert waste tires, rubber, and plastic scrap into fuel oil, carbon black, steel wire and combustible gas. The plant has the advantages of environmental friendly, energy-saving, high oil yield and quality, and longer service life.
Output product and usage
1. Fuel oil (40-45%): Widely used as fuel oil in industries such as steel and iron factories, ceramics or heavy oil generators, cement factories, boiler heating, etc. Or being refined into non-standard diesel for use in trucks, tractors, etc.
2. Carbon black(30%): Be pressed into pellets for use in industrial heating； It can be ground and refined to different standards.
3. Steel wires(10%): Sold or reprocessed
4. Combustible gas(10%-15%): Can be recycled and used during production as fuel.
Specification
| Item | Content |
| Raw materials | Waste tyre/rubber/plastic |
| Output | Fuel oil, carbon black, steel wire, syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
3D layout design
Main features
Safety: Alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure the machine working smoothly.
Oil-water separator: Its water sealing design ensures that oil and gas are separated and combustible gas can not return to the reactor.
Energy-saving:
The inner reactor body and outside insulation cover have good airtightness, avoiding heating loss and saving fuel.
The combustible gas that cannot be further cooled down into fuel oil will be recycled to the furnace for heating the reactor, maximizing resource utilization.
The cooling water adopts a circulating mode, which is pollution-free, no discharging, and recyclable.
High efficiency discharging: Adopt screw conveyor discharging device, discharge carbon black in sealed condition, no pollution and save labor and time.
Fast installation: All of the condensing parts have been installed together before delivery from the factory, saving installation time and ensuring welding quality.
Auto feeder machine to feed raw material automatically, save labor and time
Our service
1. One-stop solution. We have more than 20 years of rich experience in manufacturing waste pyrolysis plants. We pay more attention to customer experience and customer satisfaction. As long as you need it, we are able to provide you with a better quality complete production line.
2. We have our own factory and trading company, no middlemen, more cost-effective, and it is more convenient for you to replace related parts, as long as there is a problem, we can provide a solution immediately, product quality is guaranteed.
3. We promise that our plants are efficient and have a long service life to ensure that you can quickly produce in batches.
4. Delivery time is 15-25 days.
5. We can send engineers on-site to guide installation and train your workers.
6. One-year warranty, lifelong maintenance of the equipment, providing professional use guidance services.
