Huayin 5 Ton Waste Plastic Pyrolysis Plant Plastic To Fuel Pyrolysis Machine
Product description
1. The waste plastic pyrolysis plant function is converting waste plastic into fuel oil, carbon black, and syngas.
2. Capacity from 1 ton-15ton capacity per batch. Support customization.
3. Fast installation design & Bulk type design &Container design
4. Environmental friendly, no black smoke and waste water discharged out.
5. Large condensing area ensures a high oil yield.
6. Low operating cost.
7. High Automation. Auto feeding systems and discharging carbon black devices make this recycling machinery much easier to operate.
8. Certification: CE, ISO, SGS, BV.
9. Material of reactor: Q345R/Q245R/310S+Boiler plate/Stainless steel, thickness 16mm/18mm.
Specification
| Item | Content |
| Raw materials | Waste plastic, PP ,PE, PS, ABS,PMMA,etc. |
| Output | Fuel oil , carbon black,syngas |
| Model | Reactor size | Capacity |
| HY1500*3000 | 1 T/batch |
| HY2200*5500 | 5 T/batch |
| HY2200*7500 | 7 T/batch |
| HY2600*6600 | 8 T/batch |
| HY2800*6000 | 9 T/batch |
| HY2800*6600 | 10 T/batch |
| HY2800*8000 | 15 T/batch |
| Remarks | Support customization |
| Reactor material and thickness | Q345R/Q245R/310S (Boiler plate/stainless steel) 16mm/18mm |
| Land area | 300-400㎡ (L30-40m*W10m) |
| Number of workers | 3-4 |
| Oil density and calorific value | 0.89g/cm³&44.30KJ/KG |
| Processing time and power | 10-24 hours. Averagely 15KW/h |
| Certification | CE, ISO, BV, SUV, SGS Oil Report, Emission Report, 11 patents |
Our advantage
| Our advantage |
| Reactor material | Adopt Q245R/Q235R high pressure and temperature resistance steel plate to ensure longer service life. For some special raw materials, we use a special steel plate. |
| High efficiency discharging | Adopt screw conveyor discharging device, discharge carbon black in sealed condition, no pollution, and save labor and time. |
| Integrated condensing device | All of the condensing parts have been installed together before delivery from the factory, saving installation time and ensuring welding quality |
| Auto feeding system | Auto feeder machine to feed raw material automatically, save labor and time. |
| Energy saving | The inner reactor body and outside insulation cover have good airtightness, avoiding heating loss and saving fuel. The combustible gas (that cannot be further cooled down into fuel oil )will be recycled into the furnace for heating the reactor, maximizing resource utilization. |
| Valves | All of the valves use stainless steel. |
| Non-pollution | Adopt 3 layers of ceramic packing dedusting device and water spray, finally, no black smoke discharged out. SGS emission report provided. |
| Safety devices | Alarm, auto pressure releasing device, anti backfire device, vacuum pump to ensure the machine working smoothly. |
FAQ
1. What is the price of one complete set of waste pyrolysis plants?
The price of the pyrolysis plant depends on the configuration, and capacity, please contact us to get the latest quotation.
2. What payment methods do you accept?
A: We can accept T/T, L/C, Western Union.
3. Does waste pyrolysis plants pollute the environment?
With a powerful de-dusting system, the smoke will be desulfurization and purified before being discharged out. SGS emission reported provided.
4. How many countries have your machines been exported to?
HUAYIN equipment has been exported to over 80 countries including Romania, Hungary, Turkey, Slovakia, Ecuador, Guatemala, Haiti, Mexico, Peru, Canada, Jordan, UAE, Lebanon, Italian, Chile, Poland, England, Thailand, Greece, Mexico, Benin, Indonesia, India, Singapore, Russia, etc.
5. How long will it take to get the machine?
The delivery time is 15 -25 working days.
Product Tags:
|
|

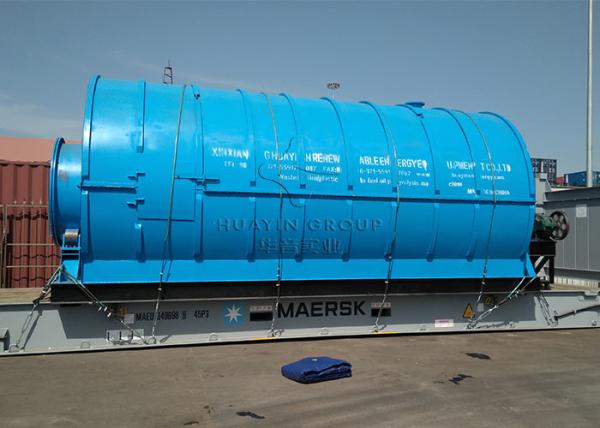

Huayin 5 Ton Waste Plastic To Oil Machine Pyrolysis Images
|
